EASYARM 4 Balanced Articulated Arm

The series EasyArm is designed to support and balance the weight of any tool or device up to 10 Kg.

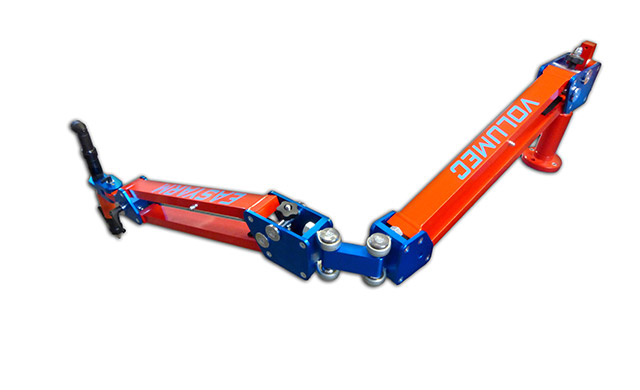

The structure, built entirely of aircraft aluminum, ensures high fluidity of movement, keep the tool in the correct positions, and absorb couples / torsion due to the machining.
There are many combinations that can be realized by choosing between different fastening systems, locking the arm in any position, work areas and accessories.
The use of the articulated arm balanced prevents' fatigue of the operator thereby ensuring greater productivity in respect of their own health.
EasyArm is a full line of articulated arms balanced suitable for different areas of application.

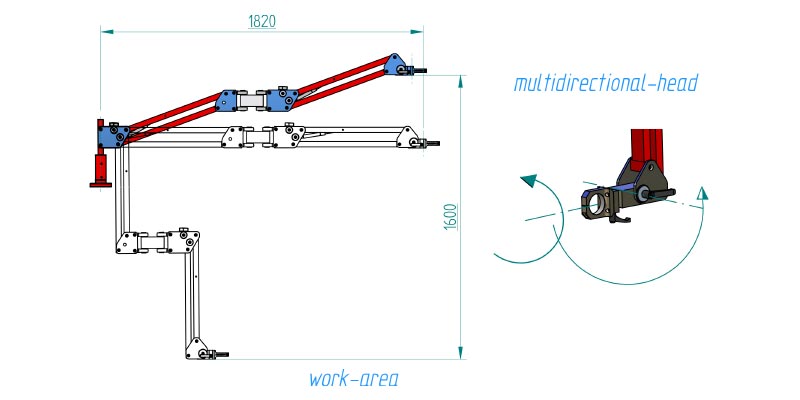

Working Area

Characteristics

  • Removes the weight of your tool, reducing operator fatigue while safeguarding the health but increasing productivity
  • Allows a fluid and manageable movement in any direction
  • Absorbs couples and twists due to the use of tools
  • Is built entirely at our company in Italy
  • Offers a complete range of solutions for every process.

EA4- Multi articulated arm

The special articulation for maximum flexibility and movements, double balance adjustment and large work area also in height. Possibility to working also near the fixing base.ZERO GRAVITY.
Model Ray work area Structure Torque Weight Balanced Weight Arm
(mm) (Nm) (kg) (kg)
EA186002 1820 Triple arm 150 1,5 – 2 20
EA186004 1820 Triple arm 150 2,5 –5 20
EA186008 1820 Triple arm 150 5,5 – 8 20
EA186010 1820 Triple arm 150 8,5 – 10 20

EAB4 - Multi articulated arm with locking system

The EAB series can be used as standard balanced arm with the option of lock the tool to a desired height and maintained over the entire work area.
Model Ray work area Structure Torque Weight Balanced Weight Arm
(mm) (Nm) (kg) (kg)
EAB186002 1820 Triple arm 150 1,5 – 2 22
EAB186004 1820 Triple arm 150 2,5 –5 22
EAB186008 1820 Triple arm 150 5,5 – 8 22

Video

Tools attachment

M - MULTIDIRECTIONAL HEAD
T40 - TERMINAL FIXING TOOL DIAMETER 40 mm
T60 - TERMINAL FIXING TOOL DIAMETER 60 mm
T80 - TERMINAL FIXING TOOL DIAMETER 80 mm
A - ADAPTER FOR DIAMETERS SMALLER THAN 40 MM, 60 MM, 80 MM
ORBITAL ATTACHMENT A
ORBITAL ATTACHMENT B
ORBITAL ATTACHMENT C - MAX Ø 130mm
ORBITAL ATTACHMENT D - MAX Ø 85mm
ORBITAL ATTACHMENT E
ATTACHMENT F

Accessories

MCA001: TAPPING MACHINE TROLLEY HOLDER
850x750mm (total weight 65 kg.)
H=870 mm
Upper bull top
Internal top with bushes holder
4 turning wheels – 2 with brakes
BML001: WORK STATION
800x600 mm (total weight 150 kg.)
H= 830 mm (adjustable)
Thickness of the working plane 30mm entirely in milled steel and t-slots interior bushes holder
CCM001: TROLLEY WITH LIFTING COLUMN 800X800X30 mm WITH HANDLE DRIVING
lifting column h=2000 mm handling of the linear guide and trapezoidal bar, moved by electric or pneumatic screwdriver. moved bt with 4 tournig wheels, 2 with brake.
Weight: 220 kg.
CCF001: LIFTING COLUMN H=1850 MM
handling on linear guide and trapezoidal bar controllable with electric or pneumatic screwdriver handle driving
weight 60 kg
CCS001: TROLLEY WITH BASE 600X600x 10 mm and COUNTERWEIGHT
4 wheels and brake.
For double arm . EA2 o EAB2
Weight 60 Kg
CCF100: TROLLEY WITH BASE 800X800X30 mm
central column for arm support h=1000 mm
4 turning wheels, 2 with brakes.
weight: 150 kg
